H3Y-4 Adjustable Time Relay 14 Pin LCD Digital Display DC 12V 24V AC 220V Dual Time Cycle Control Delayer With Base Fire-Resistant Shell High-Precision Timing
Direct purchase from the factory
Kev them nyiaj ruaj ntseg
Tsoom dawb
Kev soj ntsuam
Kev rov qabTsoom dawb
Zoo siab txais tos rau Roymall, koj lub professional website yuav premium department store tsoom. Peb ntsuas thiab txaus siab rau koj kev pab, thiab peb xav qhia peb lub siab ua tsaug los ntawm ntxiv qhov zoo nkauj rau koj cov kev yuav khoom. Thaum koj yuav khoom nrog peb, koj tsis tas yuav tau cov khoom zoo thiab ua kom koj lub neej zoo dua, tab sis koj yuav tau txais ib qho tsoom dawb nrog txhua qhov kev yuav khoom. Npaj los nrhiav peb cov khoom thiab nrhiav koj cov tsoom zoo? Nrhiav peb cov khoom xaiv, sau koj qhov kev yuav khoom, thiab nqa koj lub siab rau kev zoo siab thaum koj cov tsoom dawb tuaj nrog koj cov khoom.Kev soj ntsuam
Peb yuav ua haujlwm hard kom soj ntsuam cov khoom rau koj tom qab tau txais koj cov kev yuav khoom thiab ua kom lawv mus kom zoo. Cov lus qhia soj ntsuam yuav muab rau koj hauv koj daim email confirmation.Hauv feem ntau, cov kev yuav khoom yuav raug kho hauv 2 hnub.Hauv cov xwm txheej tshwj xeeb, nws yuav raug delay raws li no: Thaum koj sau ib qhov kev yuav khoom hnub Saturday, Sunday lossis hnub so, nws yuav raug delay 2 hnub..Feem ntau, nws yuav tsum 5-7 hnub ua haujlwm (Monday mus Friday) tsis raug cuam tshuam los ntawm kev delay lossis lwm yam environmental factors..Vim peb cov kev soj ntsuam yog worldwide yog li cov sij hawm soj ntsuam yuav sib raug rau koj qhov chaw uas yog li nws yuav tsum tau ob peb zaug thiab thov ua siab ntev yog koj nyob hauv zej zog lossis lub teb chaws.1. Kev rov qab & hloov chaw
Peb tsuas yog txais cov khoom yuav los ntawm roymall.com. Yog tias koj yuav los ntawm peb cov khoom lag luam lossis lwm cov khoom yuav, koj tsis tuaj yeem rov qab lawv rau peb. Cov khoom kawg lossis cov tsoom dawb tsis txais tos rau kev rov qab. Kom muaj peev xwm rov qab, koj cov khoom yuav tsis tau siv thiab nyob rau hauv tib yam li koj tau txais lawv. Nws yuav tsum nyob rau hauv cov pob txha original.Tom qab tau txais cov lus qhia rov qab los ntawm peb, thov pob txha koj cov khoom rov qab thiab coj koj cov pob txha mus rau lub chaw hauv pob lossis lwm tus neeg soj ntsuam.Peb yuav kho koj cov khoom rov qab lossis hloov chaw hauv 3-5 hnub ua haujlwm tom qab peb tau txais nws. Kev them rov qab yuav raug kho thiab automatically them rau koj qhov kev them nyiaj ua ntej.Tsis muaj kev rov qab lossis hloov chaw yuav raug txais yog tias cov khoom yog tsim custom, suav nrog custom ntev, custom color, lossis custom sau ntawv.Xav tau ntau ntxiv pab, thov hu rau peb. service@roymall.com lossis Whatsapp: +8619359849471
2.Kev them rov qab
Koj yuav tau txais tag nrho cov nyiaj rov qab lossis 100% store credit tom qab peb tau txais koj cov khoom rov qab thiab tshawb xyuas nws. Kev them rov qab yuav raug kho thiab automatically them rau koj qhov kev them nyiaj ua ntej. Thov nco ntsoov tias cov nyiaj soj ntsuam thiab cov nyiaj fees tsis yog rov qab. Cov nyiaj soj ntsuam ntxiv tsis yog rov qab thaum cov pob txha tau soj ntsuam lawm. Koj yog tus neeg ua haujlwm rau kev them cov fees no thiab peb tsis tuaj yeem tso tseg lossis rov qab lawv, txawm tias koj cov kev yuav khoom rov qab rau peb.Thaum peb tau txais thiab paub tseeb tias koj cov khoom rov qab, peb yuav xa koj ib daim email kom paub tias peb tau txais koj cov khoom rov qab. Peb yuav qhia koj txog kev txais lossis tsis txais koj cov nyiaj rov qab.Yog tias koj muaj teeb meem nrog kev them rov qab, thov hu rau peb. service@roymall.com lossis Whatsapp: +8619359849471Specifications:
>>>Manual: Click here to open<<<
Product Name: Time Relay (14 Pin/4 Open/4 Close)
Model: H3Y-4
Voltage: DC 12V, 24V, 220V (optional)
Time Range: 0.1s-99h
Time Error: 1%
Power Consumption: Max. 1.5VA
Environmental Temperature: -25~75u2103
Allowable Voltage Range: 90-110% of rated voltage
Working Modes:
Y: Power On Delay
C: Delayed Release
X: Loop Delay
Lc: Number of Cyclic Delays
Mode Setting:
Long press the S1 button on the left for 3 seconds, and the mode will automatically switch in a loop after flashing. Stop at the desired mode and release the button. After 5 seconds, it will stop flashing and save the setting.
Time Base Setting:
Long press the S2 button on the right for 3 seconds, and the time base will automatically switch in a loop after flashing. Stop at the desired mode and release the button. After 5 seconds, it will stop flashing and save the setting.
Number Setting:
Left click to switch modes.
Features:
1. Fire-Resistant and Heat-Resistant Construction:
The time relay boasts a robust PC shell that is both fire-resistant and heat-resistant, ensuring exceptional safety and durability. This design choice provides reliable protection against environmental hazards, making it suitable for various demanding applications.

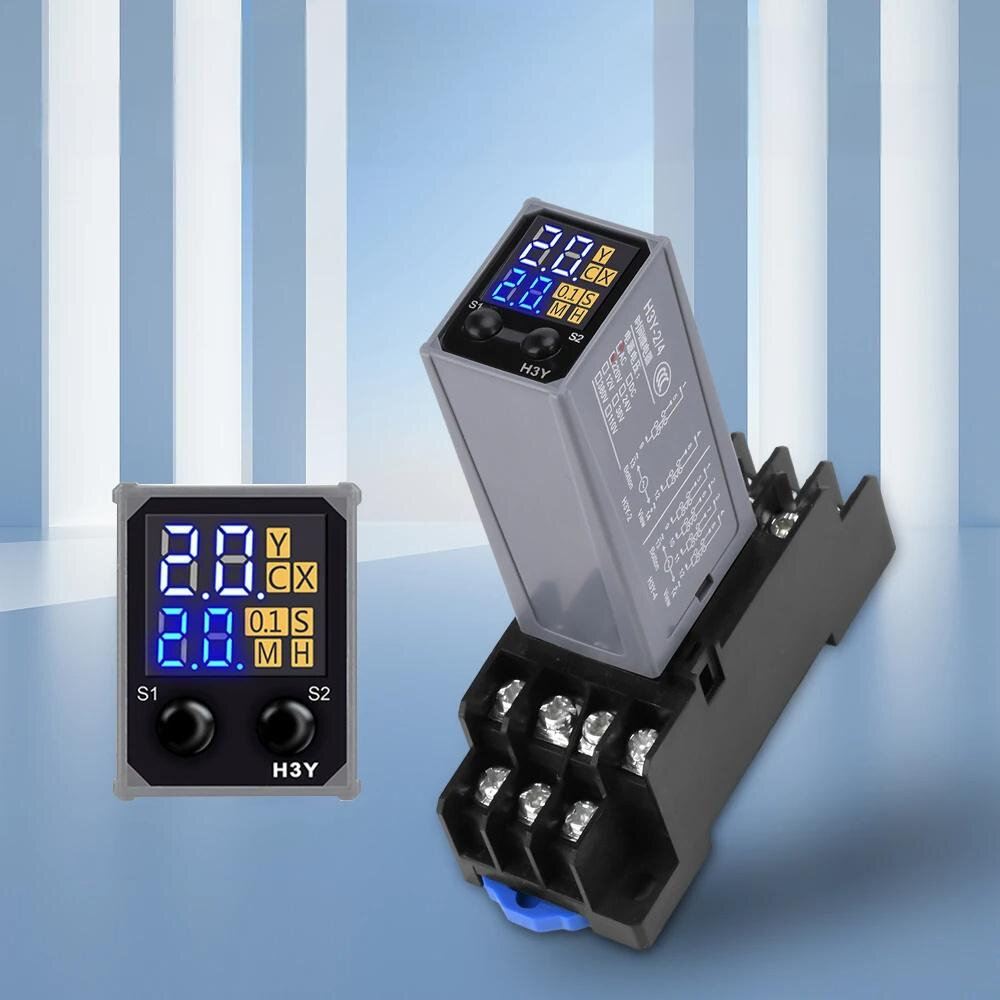

2. Clear LED Digital Display:
Equipped with a high-definition LED screen, the relay offers an intuitive and clear digital display panel. This feature simplifies monitoring and setting adjustments, providing users with all necessary information at a glance for easy operation.
3. High-Quality Silver Contacts:
The inclusion of silver contacts guarantees stable performance, high work efficiency, and excellent anti-oxidation properties. This ensures reliable switching operations throughout the relayu2019s lifespan, minimizing maintenance needs.
4. High-Conductivity Copper Pins:
Featuring large capacity pins made from copper galvanized material, which provides a high melting point along with strong oxidation and corrosion resistance. This results in superior conductivity and long-term reliability under various operating conditions.
5. Versatile Delay Modes:
The relay supports four distinct delay modes: power on delay, delayed release, cycle delay, and cycle delay count setting. This versatility allows it to cater to a wide array of applications, offering customized timing solution for different user requirements.
Package Included:
1 x Time Relay
1 x Base
